Stark Embsys is a premier Torque Sensor manufacturer in Delhi, India. A Torque Sensor (or torque transducer) converts mechanical torsional strain into a proportional electrical signal to measure static, dynamic, or reaction torque across automotive, aerospace, industrial automation, and machinery testing applications.
Engineered for high accuracy, thermal stability, and long-term overload protection in motor test benches, turbine testing, torque wrench calibrators, and robotics joints.

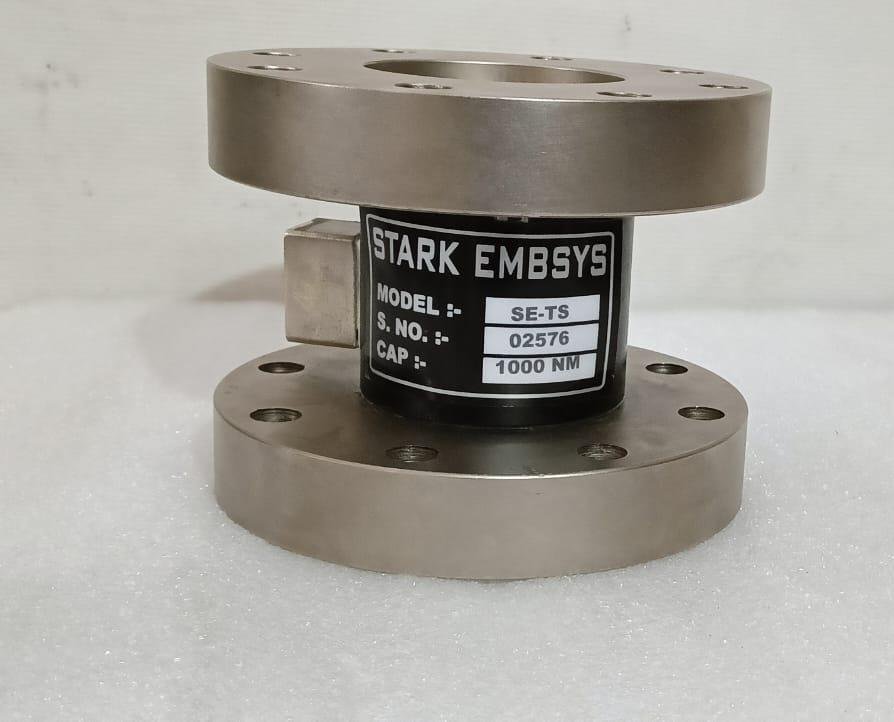

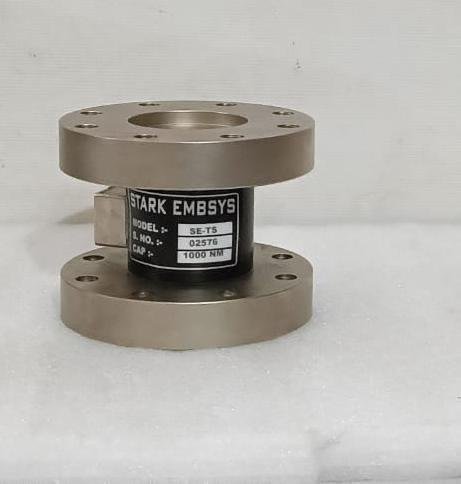

We manufacture both In-Line Torque Sensors (for direct shaft integration) and Reaction Torque Sensors (for stationary motor mounts and non-rotating flange setups).
Precision bonded foil strain gauge Wheatstone bridge provides high signal-to-noise ratio and ultra-low creep.
Available in capacities from 2 Nm up to 3000 Nm for delicate laboratory to heavy industrial applications.
Connects seamlessly with digital indicators, load cell amplifiers, DAQ systems, and PLC Modbus interfaces.
| Parameter | Specification Detail |
|---|---|
| Product Model / Item Code | SES-ST Series |
| Available Capacity Range | 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000, 3000 Nm |
| Measurement Accuracy | ± 0.1% to ± 0.25% F.S. |
| Excitation Voltage | 10 VDC (Recommended) |
| Sensor Type | Static Reaction / In-Line Rotary Torque Transducer |
| Body Material | High Grade Aircraft Alloy Steel / Stainless Steel |
| Brand / Manufacturer | Stark Embsys |
| Calibration Certificate | NABL / NPL Traceable Certificate Supplied |
